Magos Appliances
MAGOS AI Appliances combine deep-learning video analytics with any IP camera to deliver accurate detection, classification, and tracking across the MASS security platform.
-
AI video analytics for intelligent object detection and classification.
-
Scales to any site and handles multiple cameras and video channels.
-
Rugged, industrial-grade hardware suitable for any deployment.

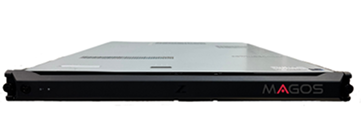

AI Appliance
Standard 1U high-reliability unit designed for large-scale sites requiring high camera/radar density and redundancy.
Highlights
-
MASS AI preloaded; supports ONVIF PTZ absolute move.
-
High channel density; stackable for any site or rack size.
-
Enterprise reliability: Redundant PSU, ECC memory, and RAID.
Technical Specifications
Item
Details
Form Factor
1U Rackmount
Supported video channels
10
Power consumption
675 W (90% efficiency)
Temperature operating range
5°C – 35°C
Dimensions (W/D/H)
43.8 x 64.7 x 4.3 cm (without rack mounting ears)
Weight
11.9 kg (26.3 lbs)
RAID
Yes
Extended logging disk
Yes
Power supply redundancy
Yes
Industrial AI Appliance
A rugged, industrial-grade solution built for remote sites and extreme environments lacking climate-controlled IT infrastructure.
Highlights
-
Fanless design with an extended temperature range for non-cooled environments.
-
Compact footprint, ideal for installation in outdoor enclosures and field boxes.
-
Versatile performance for small-to-medium sites, mobile demos, and short-term POCs.
Technical Specifications
Item
Details
Form factor
Industrial Fanless Box
Supported video channels
10
Power consumption
280W AC/DC power adapter 24V 11.67A
Temperature operating range
-25°C ~ 60°C with 100% CPU/GPU loading
Dimensions (W/D/H)
24.0 x 22.5 x 11.1 cm
Weight
4.5 kg (9.9 lbs)
RAID
Yes
Extended logging disk
Yes
Power supply redundancy
No
Mini AI Appliance
A compact, price-optimized solution designed for small-to-medium sites and indoor control rooms where space is limited but full AI performance is required.
Highlights
-
Powerful mini-PC architecture providing the same elite AI tier as our rack servers.
-
Space-saving design ideal for small offices, demo labs, and short-term POCs.
-
Reliable performance for sites with existing temperature-controlled environments.
Technical Specifications
Item
Details
Form factor
Mini-tower (3.9L)
Supported video channels
10
Power consumption
300W, 90% efficiency, 100V-240V
Temperature operating range
10°C to 35°C
Dimensions (W/D/H)
8.7 x 22.3 x 20.2 cm
Weight
Starting at 1.8 kg (3.96 lbs)
RAID
Yes
Extended logging disk
No
Power supply redundancy
No
Edge-AI Appliance
A compact, power-optimized solution for small sites and edge applications, delivering full AI performance in a rugged, rack-free footprint.
Highlights
-
Rugged housing with extended temperature range for outdoor box installation.
-
Ultra-low power (25W) optimized for remote sites and solar-powered setups.
-
Supports up to 2 cameras with the same elite AI tier as our rack servers.
Technical Specifications
Item
Details
Form factor
Compact Fanless Box (Ruggedized)
Supported video channels
2
Power consumption
9 ~ 36 VDC, 25W
Temperature operating range
-10 ~ 60 °C with 0.7 m/s airflow
Dimensions (W/D/H)
13.0 x 13.0 x 4.6 cm
Weight
1.2 kg (2.65 lbs)
RAID
No
Extended logging disk
No
Power supply redundancy
No
