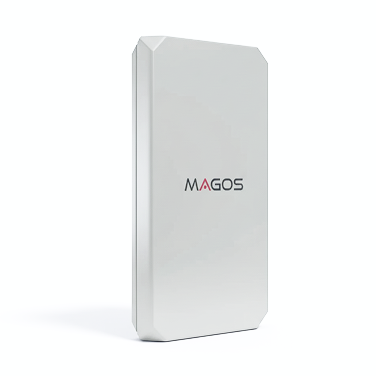

AR-300 Drone Detection Radar

AR-300 Drone Detecetion Radar

Optimal Close-Range Performance with Superior Resolution

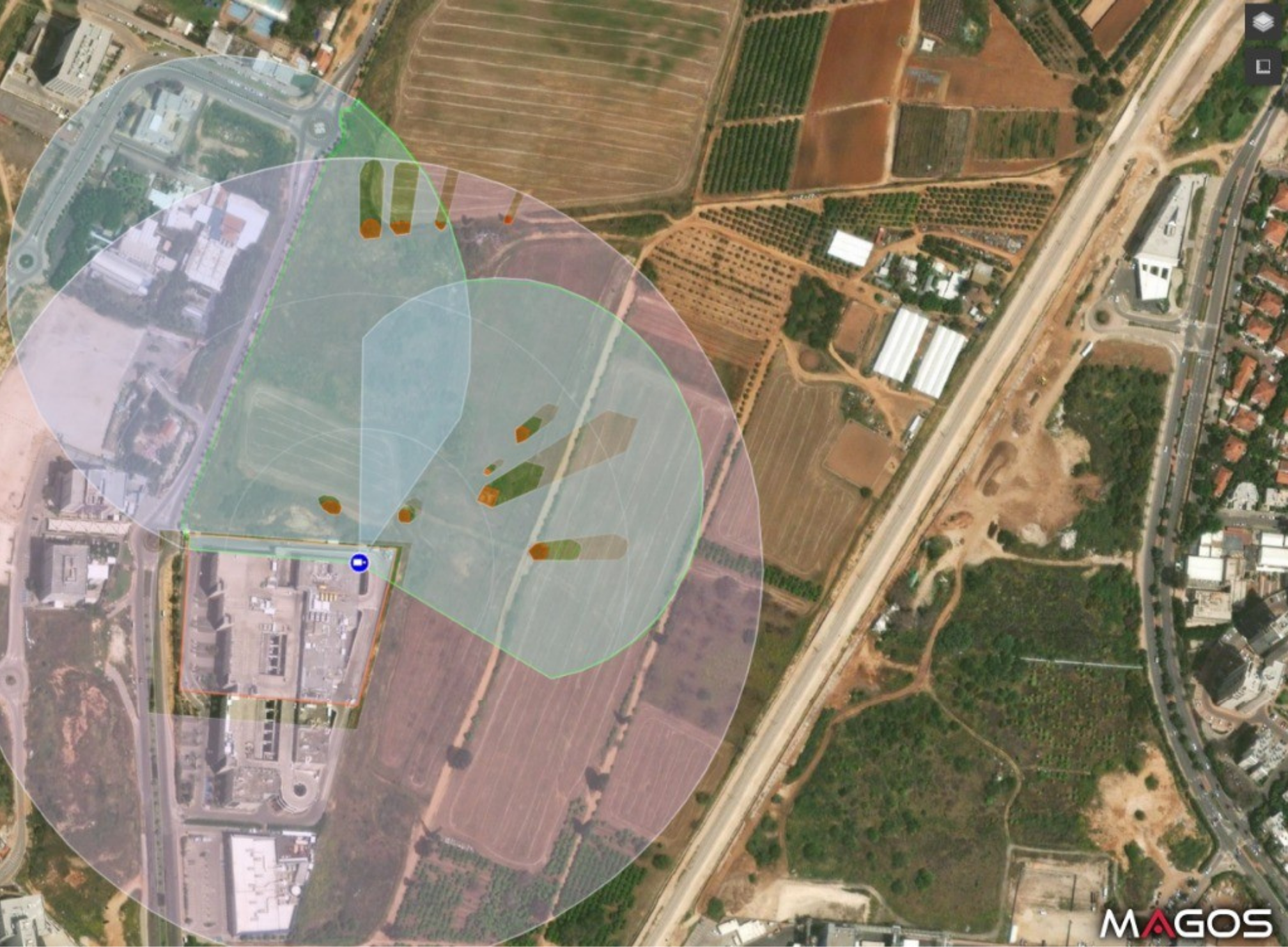

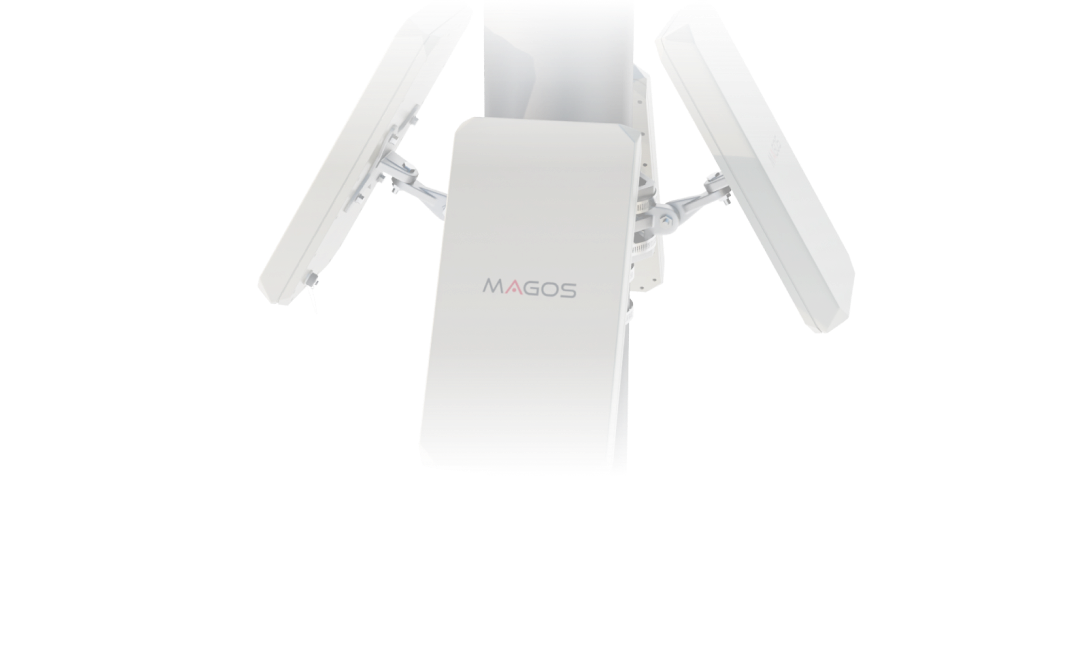

The AR-300 Drone Detection Radar offers a detection range of over 300 meters for UAVs, providing 360-degree coverage within a 300-meter radius using four radars and one PTZ camera. Integrated with Magos’ leading AI classification technology, it minimizes false alarms from birds. It delivers supreme performance under all weather and lighting conditions, seamlessly integrates with major security systems via MASS software, and is easy to install without specific customizations. Its low power, bandwidth, and size requirements ensure minimal infrastructure needs and cost-effective pricing.

Ranges

Main Highlights

  • Description

    3D Digital Beamforming radar, 300m range, 0.5m resolution

  • Detection Range

    >300m (DJI Mavic)

  • Frequency

    10.0 - 10.5GHz

  • Azimuth & Elevation Coverage

    120°X120°

  • Range Accuracy

    0.1m

  • Scan Rate

    7 Hz

  • Operating Temperature

    -40°C - +55°C

  • Weight

    4.16Kg / 9.17lbs

  • Ordering P/N

    MSA1443A
