Ground-Based Surveillance Radars

Magos' radars combine superior range resolution (less than 1m), an angle resolution lower than 0.7°, and wide coverage of up to 120°X30° allowing for near-perfect detection for all types of threats even in the most challenging cluttered environments and in all weather conditions.

MAIN FEATURES

Utilizing the state of the art MIMO & Digital Beamforming technology.
Area coverage of over 23,500m² (>6 acres) to 810,000m² (>200 acres).
Detection range of 150m to 1,000m for walker/vehicle/boat.
Extremely low power consumption.
Highly resistant in severe outdoor installations conditions, with an operating range of -40°C up to +85°C, IP67 rating, and UV resistant materials.
Low communications bandwidth required (less than 100kbps).
POE interface.

Magos radars combine superior range resolution (less than 1m), an angle resolution lower than 0.7° and a wide coverage of up to 120°X30° allowing for near perfect detection for all types of threats even in challenging "cluttered" environments and in all weather conditions.

MAIN FEATURES

Utilizing the state of the art MIMO & Digital beamforming technology
Covers an area of over 50,000m² (>12 acres) to 810,000m² (>200 acres)
Detection range of 250m to 1,000m for walker/vehicle/boat
Extremely low power consumption
Designed for severe outdoor installations conditions, with operating range of -40°C up to +85°C, IP67 rating and UV resistant materials
Low communications bandwidth required (less than 100kbps)
POE interface

HIGH RESOLUTION RADAR

Less than 10m of small/narrow clear area is required between a fence and possible obstacles such as trees, moving vehicles, etc.

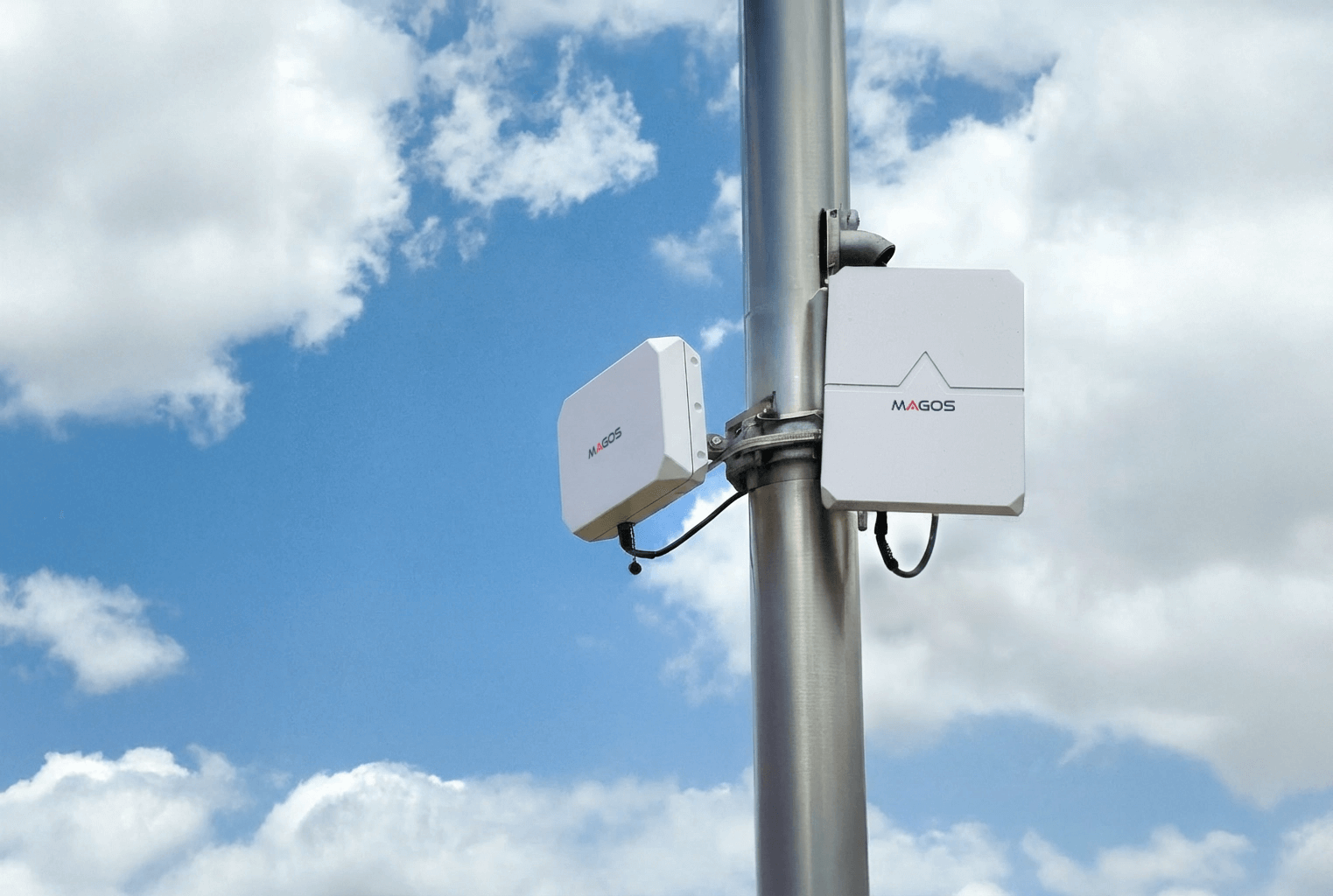

Installation examples from around the world

Magos advantages

Presenting MAGOS integrated AI Target Classifier

Magos integration with Percepto drone systems

Magos Superior Performance

Magos integration with Spark drone

SR 500 - Radar Advantages

SR 500 - High Res Short Range radar

Magos Introduction

View All
SR-150
SR-250
SR-500
SR-1000
SCEPTER-C

GENERAL

Frequency

C-Band
Sensor Type

High resolution MIMO digital beam-forming radar
Reliability

MTBF of 50,000 hours, no moving parts
Communication Interface

Ethernet (less than 100kbps)
Power Interface

PoE 802.3af (802.3at Type 1)
Environmental Ratings

NEMA-6, IP67
Operating Temperature

-40° - +85° C

Specifications

SPECIFICATIONS	SR-150
Detection range	Human: 150m Vehicle/Boat: 150m
Azimuth coverage	120°
Elevation coverage	30°
High Range accuracy	< 1m
Azimuth accuracy	1°
Scan rate	3 Scans per sec
Target detection speed	0.3 - 30m/sec
Dimensions	250mm(w) x 150mm(h) x 59mm(d) / 9.8"(w) x 5.8"(h) x 2.3"(d)
Power consumption	48V, 3.5W
Weight	1.5Kg / 3.3lb
Approvals / Certifications	CE, FCC, UL, IC, Anatel (Brazil), ETA (WPC - India), KC (Korea), EAC (RFA - Russia), RCM (Australia)

SPECIFICATIONS	SR-250
Detection range	Human: 250m Vehicle/Boat: 250m
Azimuth coverage	120°
Elevation coverage	30°
High Range accuracy	< 1m
Azimuth accuracy	1°
Scan rate	3 Scans per sec
Target detection speed	0.3 - 30m/sec
Dimensions	250mm(w) x 150mm(h) x 59mm(d) / 9.8"(w) x 5.8"(h) x 2.3"(d)
Power consumption	48V, 3.5W
Weight	1.5Kg / 3.3lb
Approvals / Certifications	FCC, UL, IC, Anatel (Brazil), ETA (WPC - India), KC (Korea), EAC (RFA - Russia), RCM (Australia)

SPECIFICATIONS	SR-1000
Detection range	Human: 800m Vehicle/Boat: 1000m
Azimuth coverage	100°
Elevation coverage	30°
High Range accuracy	< 1m
Azimuth accuracy	0.7°
Scan rate	2 Scans per sec
Target detection speed	0.3 - 30m/sec
Dimensions	250mm(w) x 300mm(h) x 80mm(d) / 9.8"(w) x 11.8"(h) x 3.15"(d)
Power consumption	48V, 5W
Weight	3Kg / 6.6lb
Approvals / Certifications	FCC, UL, IC, Anatel (Brazil), ETA (WPC - India), KC (Korea), EAC (RFA - Russia), RCM (Australia)

SPECIFICATIONS	SR-500
Detection range	Human: 400m Vehicle/Boat: 600m
Azimuth coverage	120°
Elevation coverage	30°
High Range accuracy	< 1m
Azimuth accuracy	1°
Scan rate	2 Scans per sec
Target detection speed	0.3 - 30m/sec
Dimensions	250mm(w) x 150mm(h) x 59mm(d) / 9.8"(w) x 5.8"(h) x 2.3"(d)
Power consumption	48V, 3.5W
Weight	1.5Kg / 3.3lb
Approvals / Certifications	FCC, UL, IC, Anatel (Brazil), ETA (WPC - India), KC (Korea), EAC (RFA - Russia), RCM (Australia)

SPECIFICATIONS	SCEPTER-C
Detection range	Human: 400m Vehicle/Boat: 600m
Azimuth coverage	100°
Elevation coverage	30°
High Range accuracy	< 1m
Azimuth accuracy	0.7°
Scan rate	2 Scans per sec
Target detection speed	0.3 - 30m/sec
Dimensions	250mm(w) x 300mm(h) x 80mm(d) / 9.8"(w) x 11.8"(h) x 3.15"(d)
Power consumption	48V, 5W
Weight	3Kg / 6.6lb
Approvals / Certifications	CE/RED EN 62368-1:2014, EN 60950-22:2006 / AC:2008, EN 301 489-1, EN 301 489-3, EN 300 440

SPECIFICATIONS	SR-150	SR-250	SR-500	SR-1000	SCEPTER-C (For EU Customers)
Detection range	Human: 150m Vehicle/Boat: 150m	Human: 250m Vehicle/Boat: 250m	Human: 400m Vehicle/Boat: 600m	Human: 800m Vehicle/Boat: 1000m	Human: 400m Vehicle/Boat: 600m
Azimuth coverage	120°	120°	120°	100°	100°
Elevation coverage	30°	30°	30°	30°	30°
High Range accuracy	< 1m	< 1m	< 1m	< 1m	< 1m
Azimuth accuracy	1°	1°	1°	0.7°	0.7°
Scan rate	3 Scans per sec	3 Scans per sec	2 Scans per sec	2 Scans per sec	2 Scans per sec
Target detection speed	0.3 - 30m/sec	0.3 - 30m/sec	0.3 - 30m/sec	0.3 - 30m/sec	0.3 - 30m/sec
Dimensions	250mm(w) x 150mm(h) x 59mm(d) / 9.8"(w) x 5.8"(h) x 2.3"(d)	250mm(w) x 150mm(h) x 59mm(d) / 9.8"(w) x 5.8"(h) x 2.3"(d)	250mm(w) x 150mm(h) x 59mm(d) / 9.8"(w) x 5.8"(h) x 2.3"(d)	250mm(w) x 300mm(h) x 80mm(d) / 9.8"(w) x 11.8"(h) x 3.15"(d)	250mm(w) x 300mm(h) x 80mm(d) / 9.8"(w) x 11.8"(h) x 3.15"(d)
Power consumption	48V, 3.5W	48V, 3.5W	48V, 3.5W	48V, 5W	48V, 5W
Weight	1.5Kg / 3.3lb	1.5Kg / 3.3lb	1.5Kg / 3.3lb	3Kg / 6.6lb	3Kg / 6.6lb
Approvals / Certifications	CE, FCC, UL, IC, Anatel (Brazil), ETA (WPC - India), KC (Korea), EAC (RFA - Russia), RCM (Australia)	FCC, UL, IC, Anatel (Brazil), ETA (WPC - India), KC (Korea), EAC (RFA - Russia), RCM (Australia)	FCC, UL, IC, Anatel (Brazil), ETA (WPC - India), KC (Korea), EAC (RFA - Russia), RCM (Australia)	FCC, UL, IC, Anatel (Brazil), ETA (WPC - India), KC (Korea), EAC (RFA - Russia), RCM (Australia)	CE/RED EN 62368-1:2014, EN 60950-22:2006 / AC:2008, EN 301 489-1, EN 301 489-3, EN 300 440
